Fixed Rotor Bracket

Product Introduction:

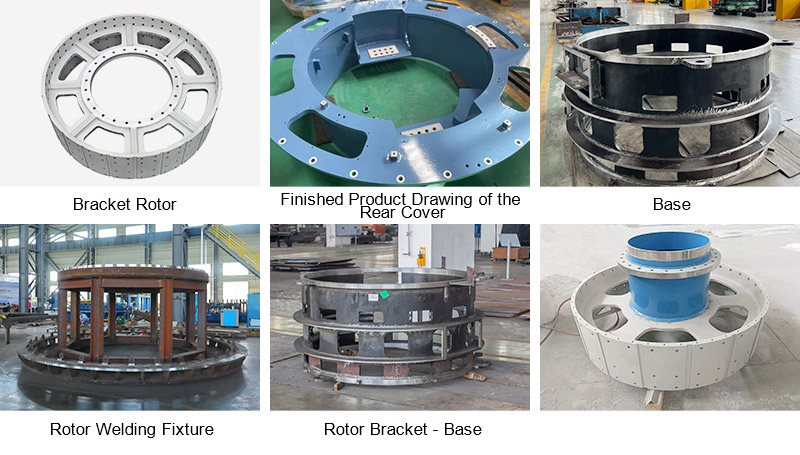

The stator bracket and rotor bracket are the core welding components of the wind turbine generator part, and the product diameter varies from 1 meter to 7 meters depending on the model size; The product manufacturing process includes laser flame cutting and cutting, grinding, rounding (or cone tube rounding), welding, CNC vertical lathe processing, and CNC gantry processing

Central processing and hot-dip zinc coating for anti-corrosion. The product processing accuracy can ensure verticality of 0.1mm, runout of 0.05mm, concentricity of 0.05mm, and outer diameter tolerance of 0.05mm.

According to the structural type, stator brackets, rotor brackets, machine bases, and end caps can be used in various large generator structures. There are no industry restrictions and they can be customized according to drawings.

Product advantages:

1. Equipped with ISO3834 welding system and ISO9606 international welding system, meeting the welding quality requirements

2. It has various welding and machining fixtures to meet the needs of different models of products, and can customize products with a large diameter of 8 meters.

3. Equipped with anti-corrosion assembly line operations to meet the requirements of different anti-corrosion systems, from hot spray zinc to paint, with different thicknesses ranging from C3 to C5.

4. Equipped with a 9.6-meter diameter annealing furnace, it can independently perform heat treatment and stress relief processing.
